Description

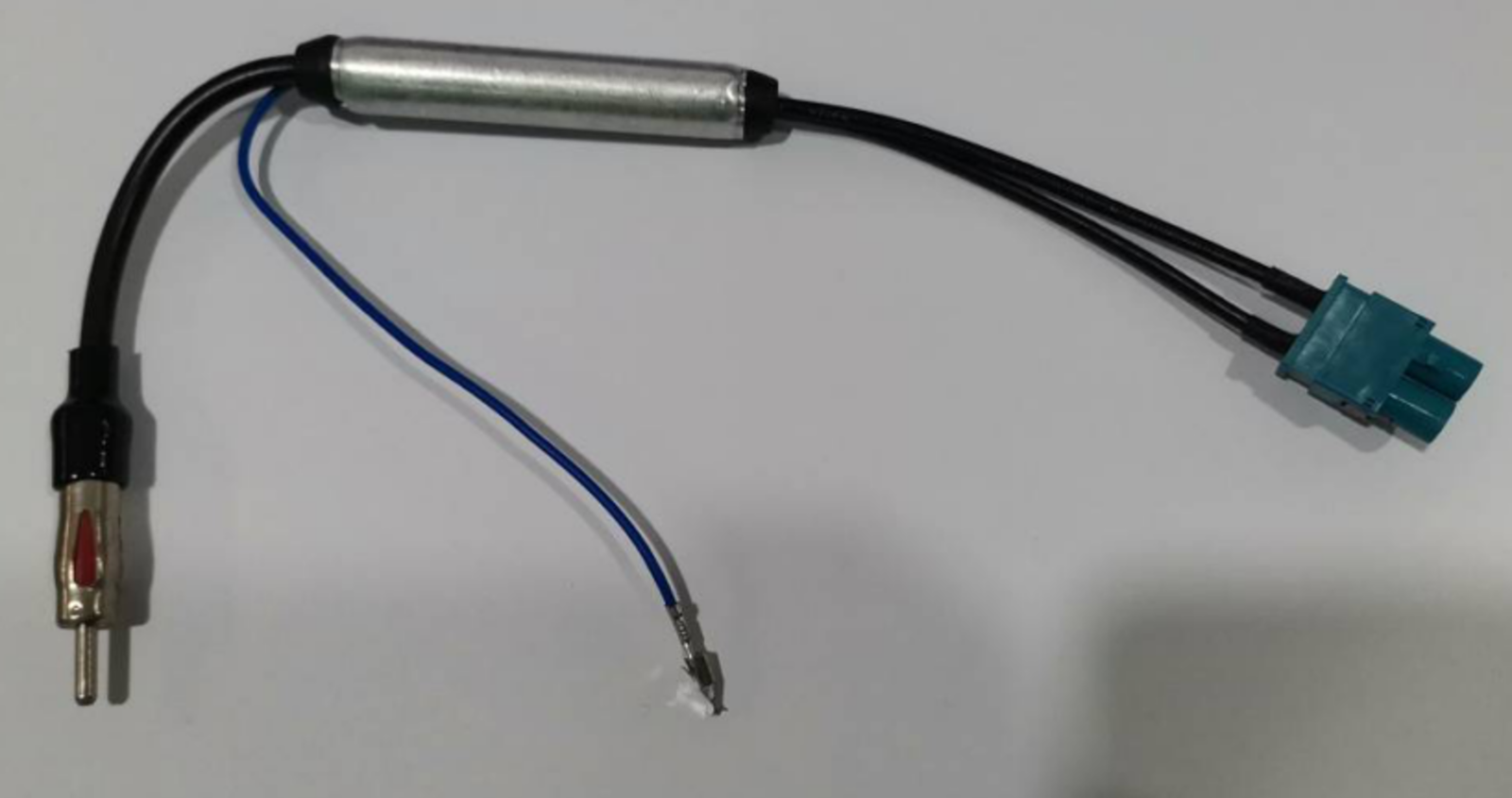

Twin Double Fakra-Din Aerial Adaptor For Audi Citroen Fiat Peugeot Seat Skoda VW
Dual Fakra leads to one din aerial adaptor, with a 12v blue power lead.For all cars with 2 OEM AM/FM aerials. (With amplified remote feed)The Aerial Adapter is needed when replacing the original factory fitted head unit with an aftermarket head unit and your vehicle has a DIN type aerial lead fitted.This adaptor is commonly required on Audi/VW where the original radio has an integral booster for the aerial connection.2x Fakra (Z) with Phantom power supply without Antenna Diversity
- Working Frequency: FM 80MHz-108MHz, AM 520KHz-1710KHz;
- Gain: FM 10dB, AM 8dB;
- Impedance: 75 Ohm Nominal;
- VSWR: max 2.0: 1;
- Working Current: 10mA – 30mA;
- Working Voltage: DC 10.5V – 16V;

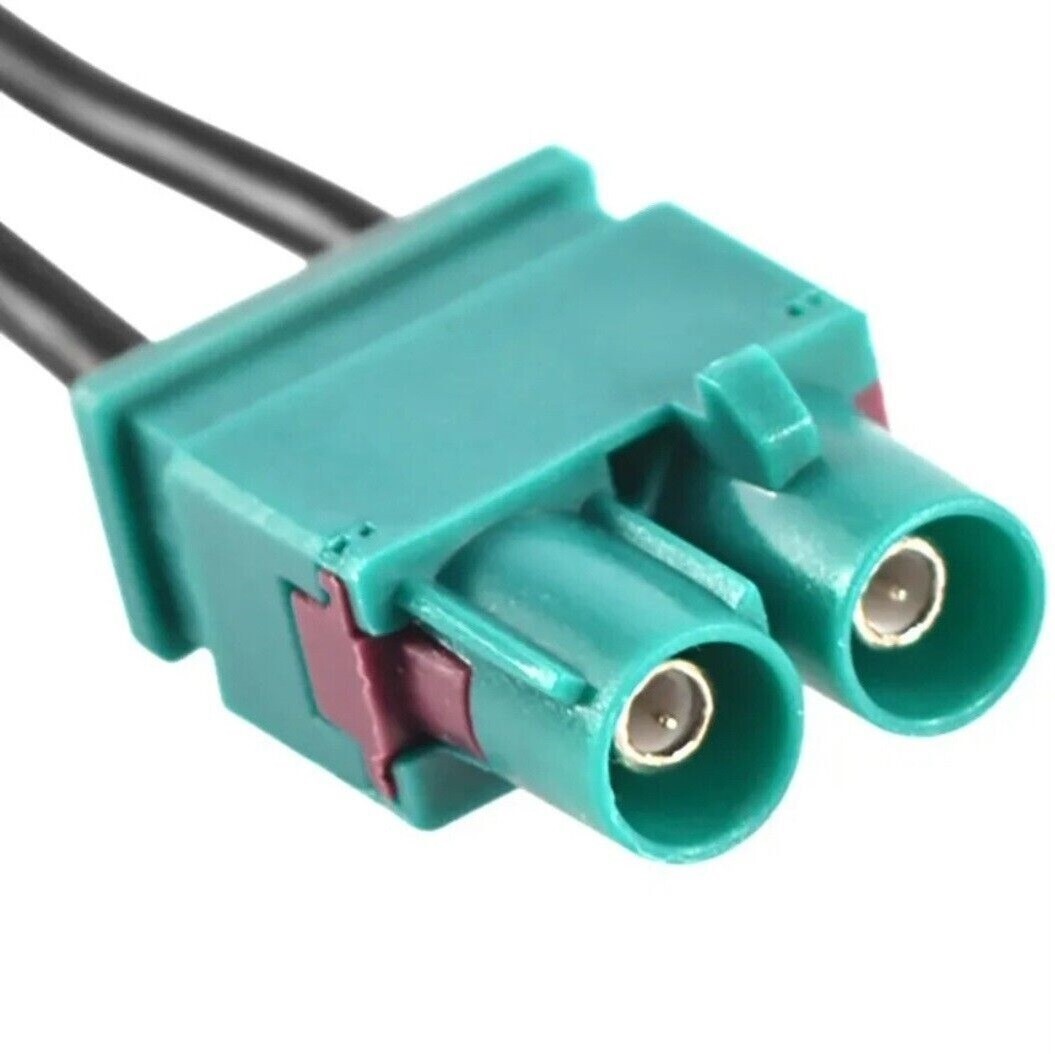

- Antenna Input: Dual Fakra Z Male Connector;

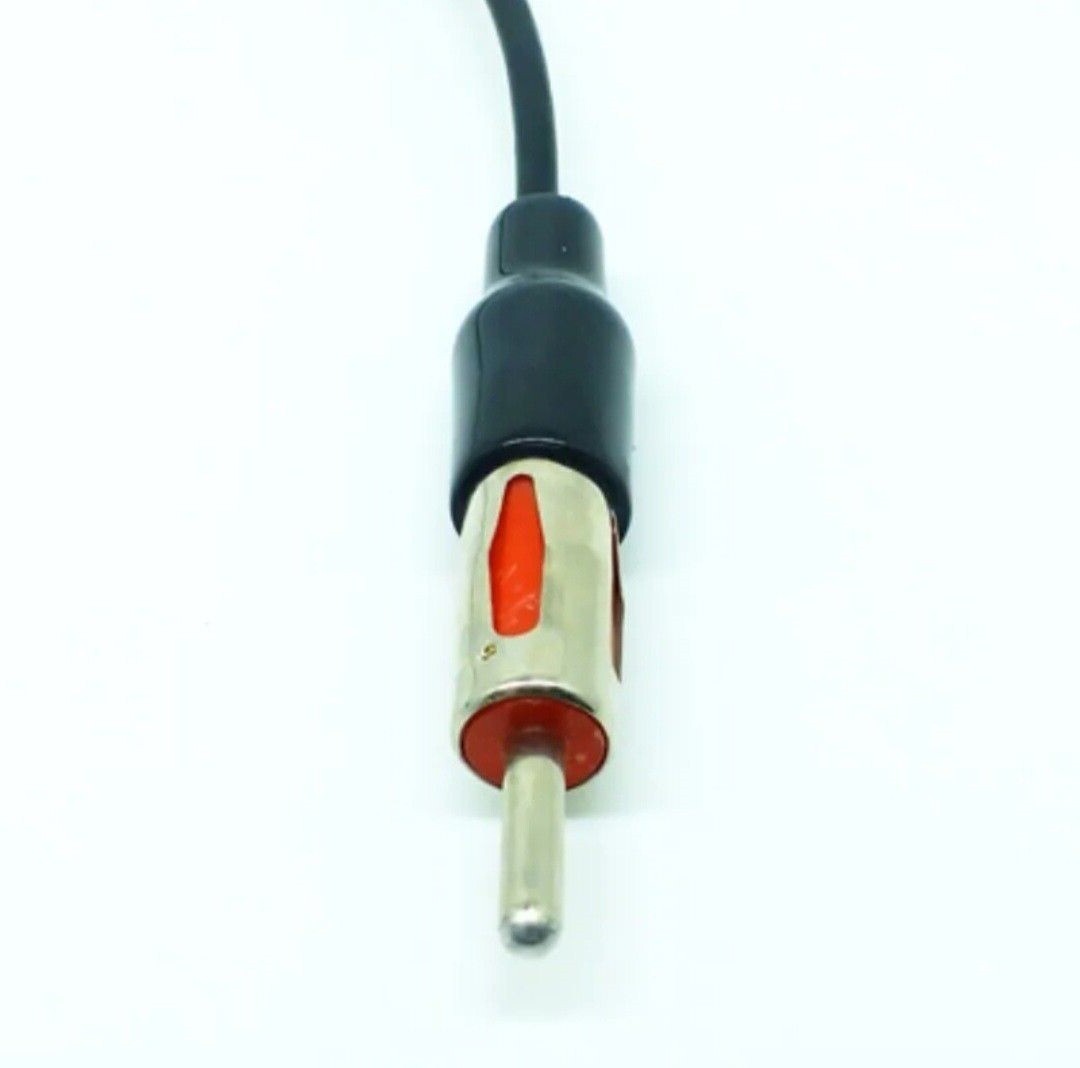

- Antenna Output: Motorola DIN Plug Connector;
- Working Temperature: -40 – 85 ℃
Note; The blue cable on this adaptor needs connecting to a 12v ignition live (Remote Out) from the head unit wiring.
| Compatible with following vehicles: | |
| Car Make / Model | Year |
| Audi A1 | 2010 – 2021 |
| Audi A3 | 2007 – 2021 |
| Audi A4 | 2007 – 2021 |
| Audi A5 | 2007 – 2021 |
| Audi A6 | 2004 – 2021 |
| Audi A8 | 2002 – 2021 |
| Audi Q7 | 2006 – 2021 |
| Audi R8 | 2007 – 2021 |
| Audi RS4 | 2005 – 2021 |
| Audi S3 | 2007 – 2012 |
| Audi S5 | 2007 – 2013 |
| Audi TT | 2006 – 2014 |
| Peugeot E7 | 2007 – 2016 |
| Peugeot 207 | 2006 – 2012 |
| Peugeot 307 | 2005 – 2007 |
| Peugeot 308 | 2007 – 2013 |
| Peugeot 407 | 2004 – 2010 |
| Peugeot 607 | 2005 – 2012 |
| Peugeot 807 | 2005 – 2014 |
| Seat Alhambra | 2011 – 2019 |
| Seat Altea | 2009 – 2015 |
| Seat Ibiza | 2008 – 2014 |
| Seat Leon | 2005 – 2012 |
| Seat Toledo | 2005 – 2012 |
| Skoda Fabia | 2007 – 2014 |
| Skoda Octavia | 2004 – 2008 |
| Skoda Roomster | 2006 – 2010 |
| Skoda Superb | 2008 – 2013 |
| Skoda Yeti | 2009 – 2013 |
| Vauxhall Agila | 2004 – 2007 |
| Vauxhall Corsa | 2004 – 2016 |
| Vauxhall Tigra | 2004 – 2009 |
| Vauxhall Vivaro | 2004 – 2014 |
| Vauxhall Antara | 2006 – 2010 |
| Vauxhall Astra | 2004 – 2010 |
| Vauxhall Meriva | 2003 – 2010 |
| Vauxhall Signum | 2005 – 2008 |
| Vauxhall Vectra | 2002 – 2008 |
| Vauxhall Zafira | 2005 – 2014 |
| VW Tiguan | 2007 – 2015 |
| VW Bora | 2005 – 2011 |
| VW EOS | 2006 – 2016 |
| VW Amarok | 2009 – 2016 |
| VW Caddy | 2010 – 2015 |
| VW Caravelle | 2009 – 2015 |
| VW Golf | 2003 – 2008 |
| VW Jetta | 2005 – 2011 |
| VW Multivan | 2003 – 2015 |
| VW Polo | 2004 – 2012 |
| VW Scirocco | 2008 – 2014 |
| VW Touareg | 2010 – 2018 |
| VW Touran | 2006 – 2010 |
| VW Transporter | 2003 – 2009 |
| VW Crafter | 2006 – 2017 |
| VW Fox | 2005 – 2011 |
| VW Passat | 2004 – 2012 |
| VW Sharan | 2004 – 2010 |
| Citroen Berlingo | 2008 – 2018 |
| Citroen C4 | 2004 – 2018 |
| Citroen C5 | 2005 – 2017 |
| Citroen C6 | 2005 – 2012 |
| Citroen C8 | 2005 – 2014 |
| Citroen C2 | 2005 – 2009 |
| Citroen C3 | 2005 – 2010 |
| Citroen C4-Picasso | 2006 – 2010 |
| Citroen Relay | 2007 – 2015 |
| Citroen Synergie | 2005 – 2014 |
| Fiat Scudo | 2007 – 2016 |
